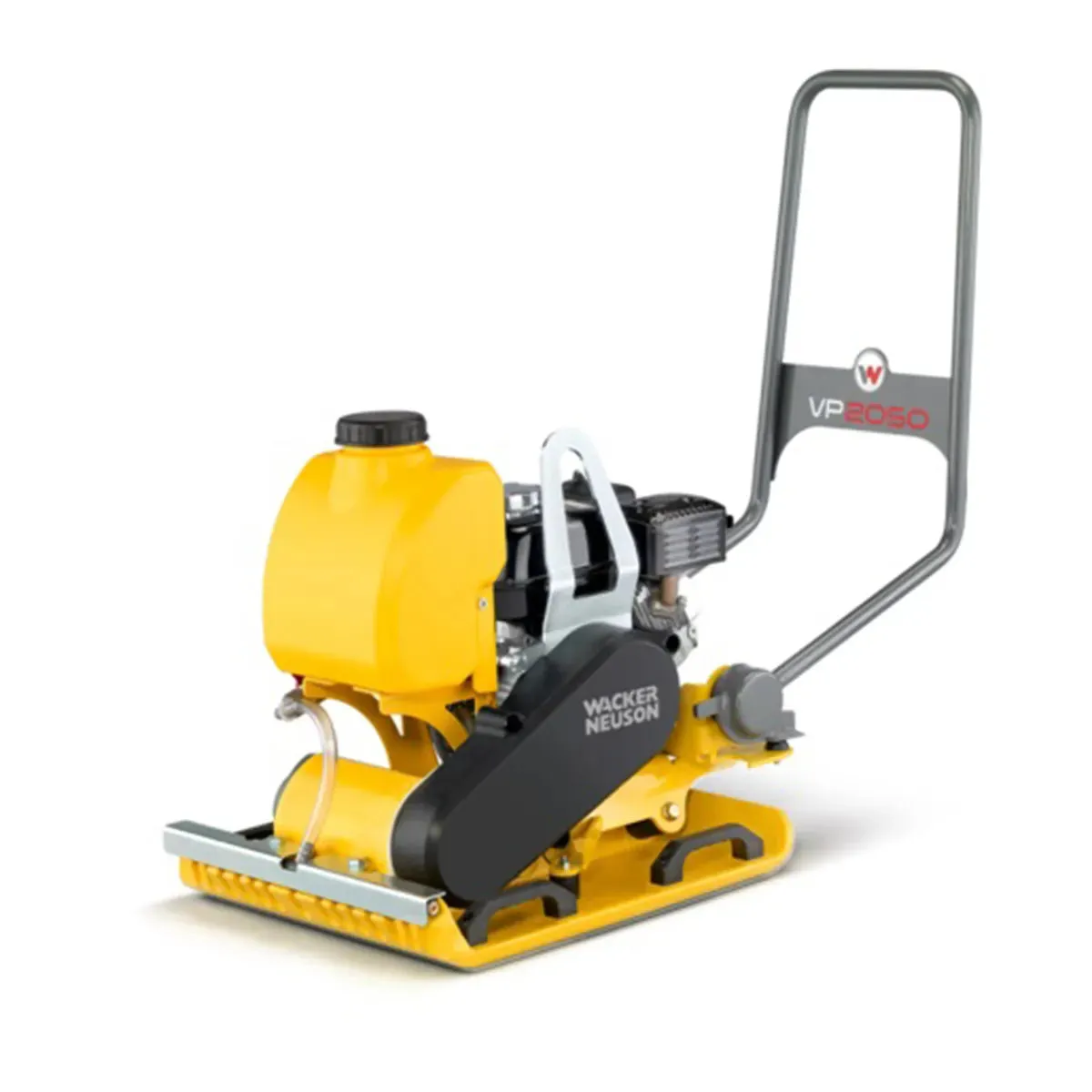

Wacker Neuson VP2050AW 23" x 19.5" Vibratory Plate Compactor with Water Tank
Features
- Single-direction vibratory plate with water tank for soil and asphalt compaction
- Designed for compaction in confined areas of granular soil in narrow trenches
- Ideal for curbs, gutters, around tanks, forms, columns, footings, guard railings, drainage ditches, gas and sewer works and building construction
- Special contoured running surfaces and rounded edges provide maximum performance and maneuverability
- Completely enclosed belt protected by a lightweight belt guard for reduced wear and minimal service
- A newly designed “low-vibration” guide handle dramatically improves operator comfort and minimizes operator fatigue
- Heavy-duty shock mounts on the engine console dampen vibrations, thereby reducing wear on the components
- Exciter bearing design requires minimal maintenance for improved productivity
- Single-direction plate compactor gas-powered
- Large solid lifting eye for safe lifting
- Handles on the base of the equipment allow easy transportation
| Wacker VP2050AW Compactor Specifications | |
| Length x width x height (handle in working position) | 40.7 x 15.2 x 37 in |
| Ground Clearance | 23 in |
| Operating weight | 193 lbs | 83 kg |
| Area Capacity | 8.073,0 ft2/h |
| Forward Running | 1,4 fps |
| Gradeability | up to 36.4% |
| Vibration frequency | 97 Hz |
| Max. centrifugal force | 4.496 lbf |
| Engine Type | Honda Gas Air-cooled, 4-cycle, single cylinder |
| Displacement | 9.9 in 3 |
| Max. power output (@3900 rpm) | 5.5 hp |
| Rated power output (@3600 rpm) | 5.0 hp |
| Tank capacity | 1,0 gal US |
| Nominal Engine speed | 3.600 1/min |
