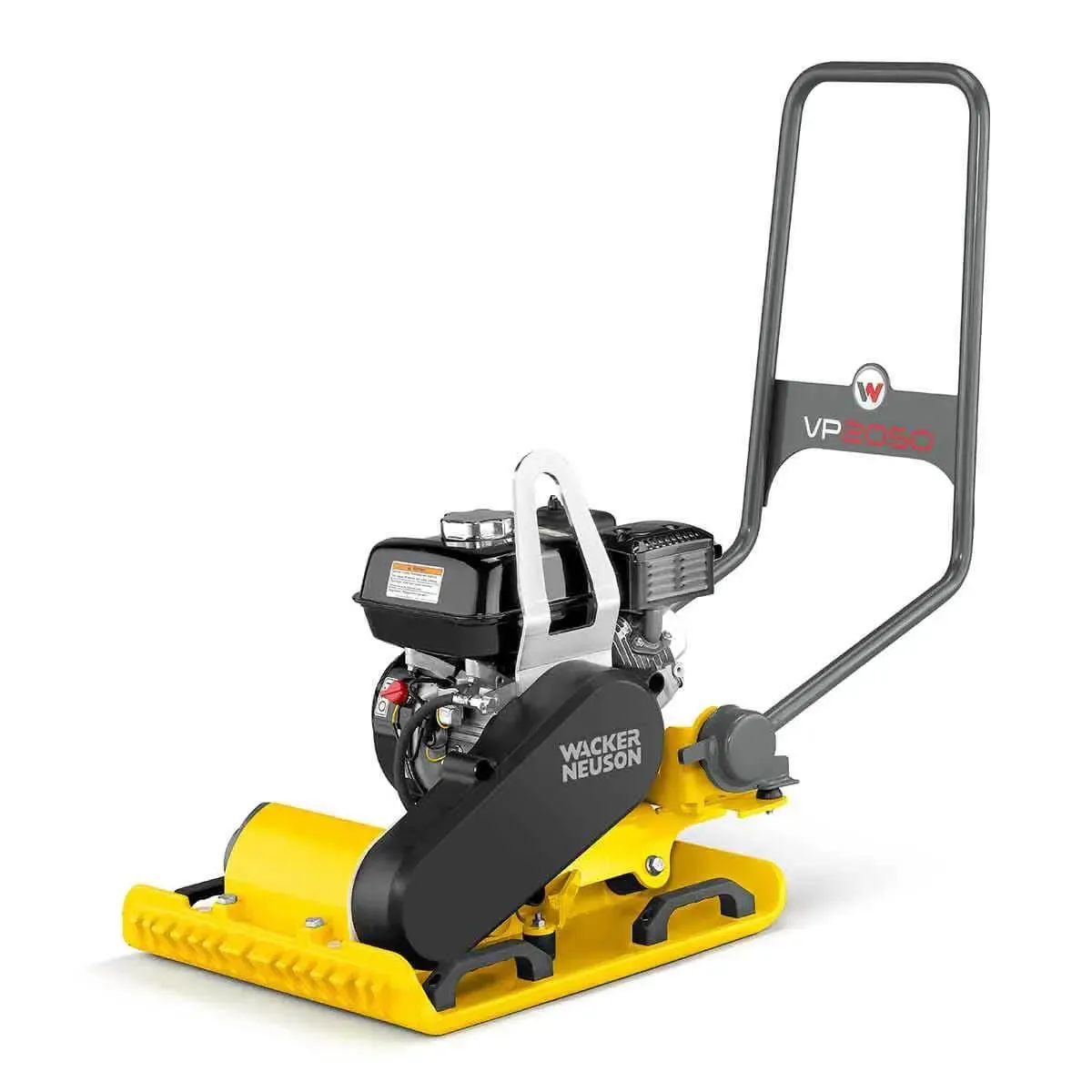

Wacker Neuson VP2050A 23" x 19.5" Vibratory Soil Plate
Features
- Designed for compaction in confined areas of granular soil in narrow trenches
- Ideal for curbs, gutters, around tanks, forms, columns, footings, guard railings, drainage ditches, gas and sewer works and building construction
Compactor Plate Features
- Special contoured running surfaces and rounded edges provide maximum performance and maneuverability
- Completely enclosed belt protected by a lightweight belt guard for reduced wear and minimal service
- A newly designed “low-vibration” guide handle greatly improves operator comfort and minimizes operator fatigue
- Heavy-duty shock mounts on the engine console dampen vibrations, thereby reducing wear on the components
- Exciter bearing design requires minimal maintenance for improved productivity
- Single-direction plate compactor gas-powered
- Large solid lifting eye for safe lifting
- Handles on the base of the equipment allow easy transportation
| Wacker VP2050A Compactor Specifications | |
| Length x width x height (handle in working position) | 40 x 19.5 x 35 in |
| Lowest Working Height | 27 in |
| Size of base plate (L x W) | 23 x 19.5 in |
| Operating weight | 193 lbs | 83 kg |
| Compacted area (soil) | up to 7,880 ft2/h |
| Forward speed (soil) | up to 88 ft/min |
| Gradeability | up to 30% |
| Vibration frequency | 97 Hz |
| Max. centrifugal force | 3,375 lbs |
| Engine Type | Air-cooled, 4-cycle, single cylinder |
| Displacement | 9.9 in 3 |
| Max. power output (@3900 rpm) | 5.5 hp |
| Rated power output (@3600 rpm) | 5.0 hp |
| Fuel tank capacity | 3.9 US qt |
| Run Time | 2.1 hr |
